51", 54" Fans, Rated Power 1.1kW/1.5kW, 380V, 50Hz, 3-phase

This fan features a high-performance belt-drive system with premium components, designed for durability, efficient operation, and easy maintenance in demanding environments.

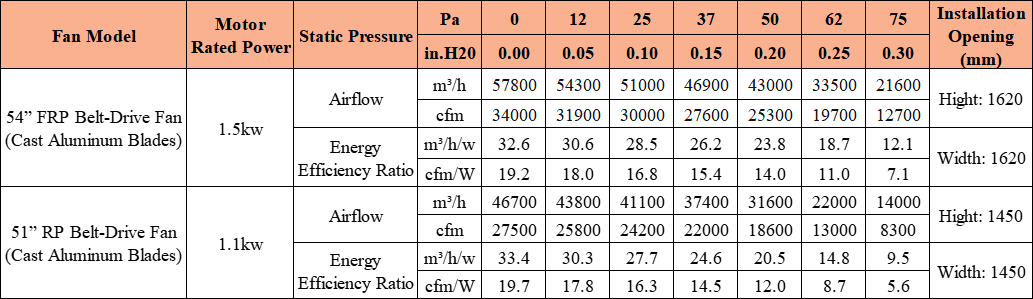

Technical Specifications:

1. One-Piece Press-Molded FRP Housing: Features smooth, flat interior/exterior surfaces and a streamlined design for low airflow resistance, high efficiency, corrosion resistance, easy cleaning, and inhibited bacterial growth.

2. One-Piece Cast Aluminum Blades: Durable, resistant to deformation and cracking. Dynamically balanced for smooth, low-vibration, quiet operation and stability under high negative pressure.

3. Aesthetic & Corrosion-Resistant Structure: Aluminum alloy uprights with a Grade 304 stainless steel mounting base plate for superior corrosion resistance.

4. Imported Bearing with Lubrication Port: The housed bearing unit includes a grease (zerk) fitting, allowing for periodic lubrication to significantly extend bearing service life.

5. Spring-Loaded Tensioning Device: Maintains optimal belt tension to improve drive efficiency and operation.

6. Cast Iron Pulley: Offers high strength, wear resistance, and long service life.

7. Imported V-Belts: Premium belts (Continental - Germany/Mitsuboshi - Japan) :Minimal deformation and extended service life.

8. Motor Options: Available with various brand options including BESS custom motors and Regal motors, etc.

9. Press-Molded FRP Diffuser Segment: Optimize airflow at the discharge.
