56” Fan, Rated Power 1.8kW/2.2kW/2.5kW, 380V, 50Hz, 3-phase

1. One-Piece Molded FRP Housing: The housing features smooth, flat interior and exterior surfaces with a streamlined aerodynamic design that reduces air resistance, enhances energy efficiency, and resists corrosion. Its easy-to-clean surface inhibits bacterial growth.

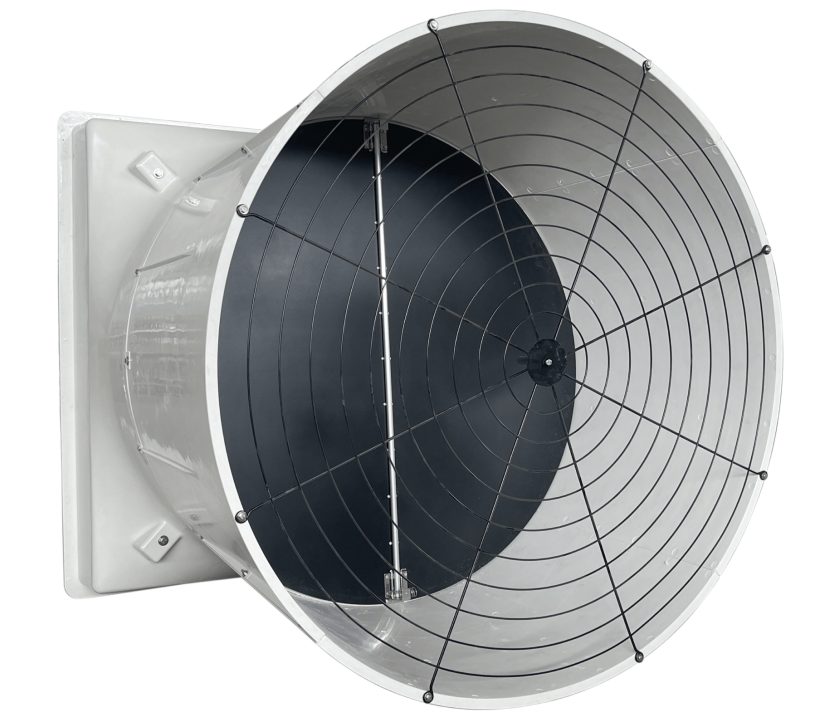

2. Split-Molded FRP Bell-Mouth Discharge Cone: This corrosion-resistant diffuser (air collection cone) is engineered to increase effective airflow while reducing energy consumption.

3. High-Strength PAG Fan Blades: Made from high-strength Polyamide (PAG) material, the fan blades are durable, resistant to deformation and cracking, ensures stable fan operation, and can withstand high negative pressure.

4. Aluminum Alloy & Stainless Steel Structure: The frame is constructed from corrosion-resistant, aesthetically pleasing aluminum profiles. All mounting hardware and standard parts are made from Grade 304 stainless steel for exceptional corrosion resistance.

5. High-Efficiency Direct Drive: The direct-drive system offers high transmission efficiency, smooth and stable operation, simple maintenance, high energy savings, and a long service life.

 6. Tilted Butterfly Damper: The damper door is made from high-strength, corrosion-resistant material that resists deformation. It provides excellent sealing, requires no return spring, and has a low failure rate.

7. Motor Options (AC or EC):

AC Motor: Class F insulation, IP55 protection rating, IE3 energy efficiency class；

EC Motor: Class F insulation, IP66 protection rating, IE5 energy efficiency class.

  1)Precise & Simple Control: Superior speed regulation performance.

  2)Full Protection: Built-in safeguards against under-voltage, overload, over-current, locked rotor, overheating, and phase loss.

  3)Soft-Start Technology: Eliminates inrush current for smooth starts and speed adjustment, protecting the grid and reducing noise.

  4) Integrated & Communicable: Built-in controller supports system communication.
