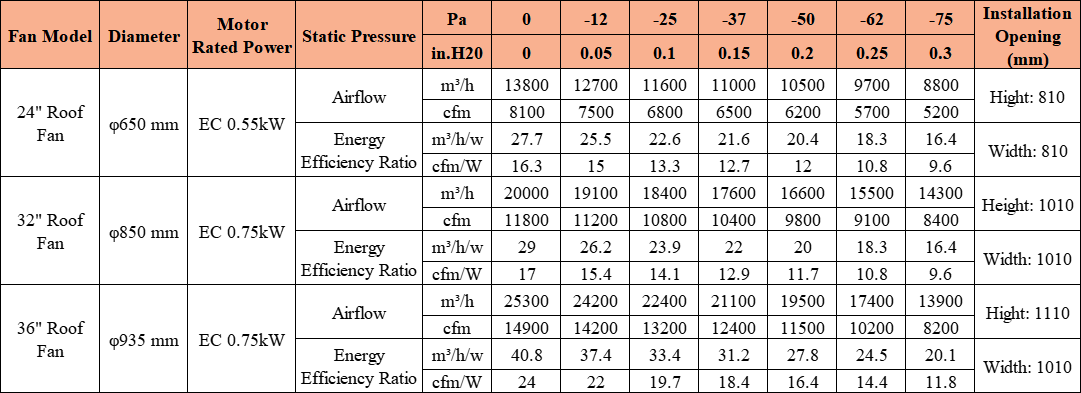

24", 32", 36" Fans, Rated Power 0.55kW/0.75kW, 380V, 50Hz, 3-phase
Function:
To exhaust stale air accumulated in the upper section of livestock and poultry houses. It provides a comfortable indoor environment while saving energy, effectively helps prevent cross-contamination among animals, and reduces the incidence of disease. It performs particularly well during minimum ventilation in winter. Installed on the roof, it only requires a square opening, making construction and sealing much simpler compared to a round opening.

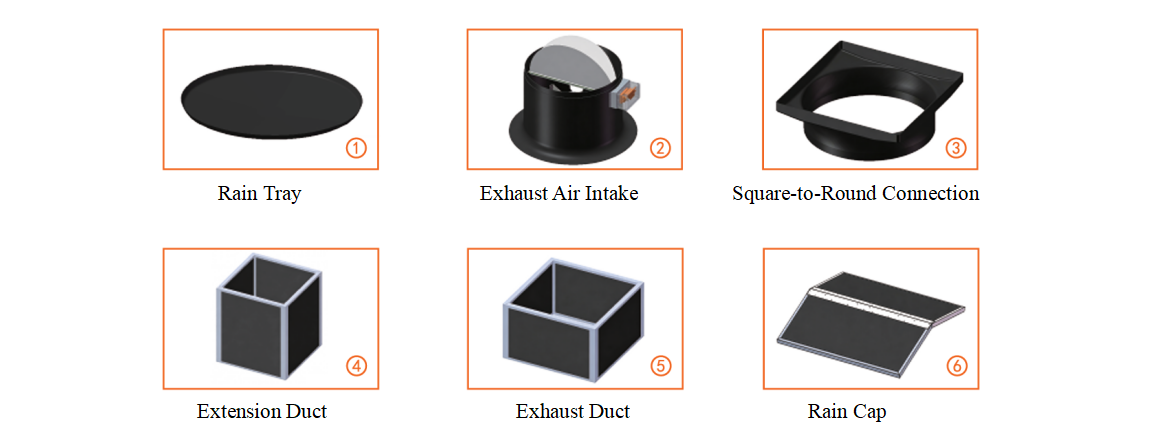

Component Features
Extension Duct, Exhaust Duct, and Rain Cap:
Material: Core is XPS (with a low thermal conductivity of ≤0.032 W/m·K and a density of 28 kg/m³). Inner and outer walls are made of 0.8mm FRP.
Benefits: Provides thermal insulation, effectively prevents condensation. These components can be nested for shipping, significantly saving transportation costs. Length can be customized according to barn height. Modular design allows for simple installation.

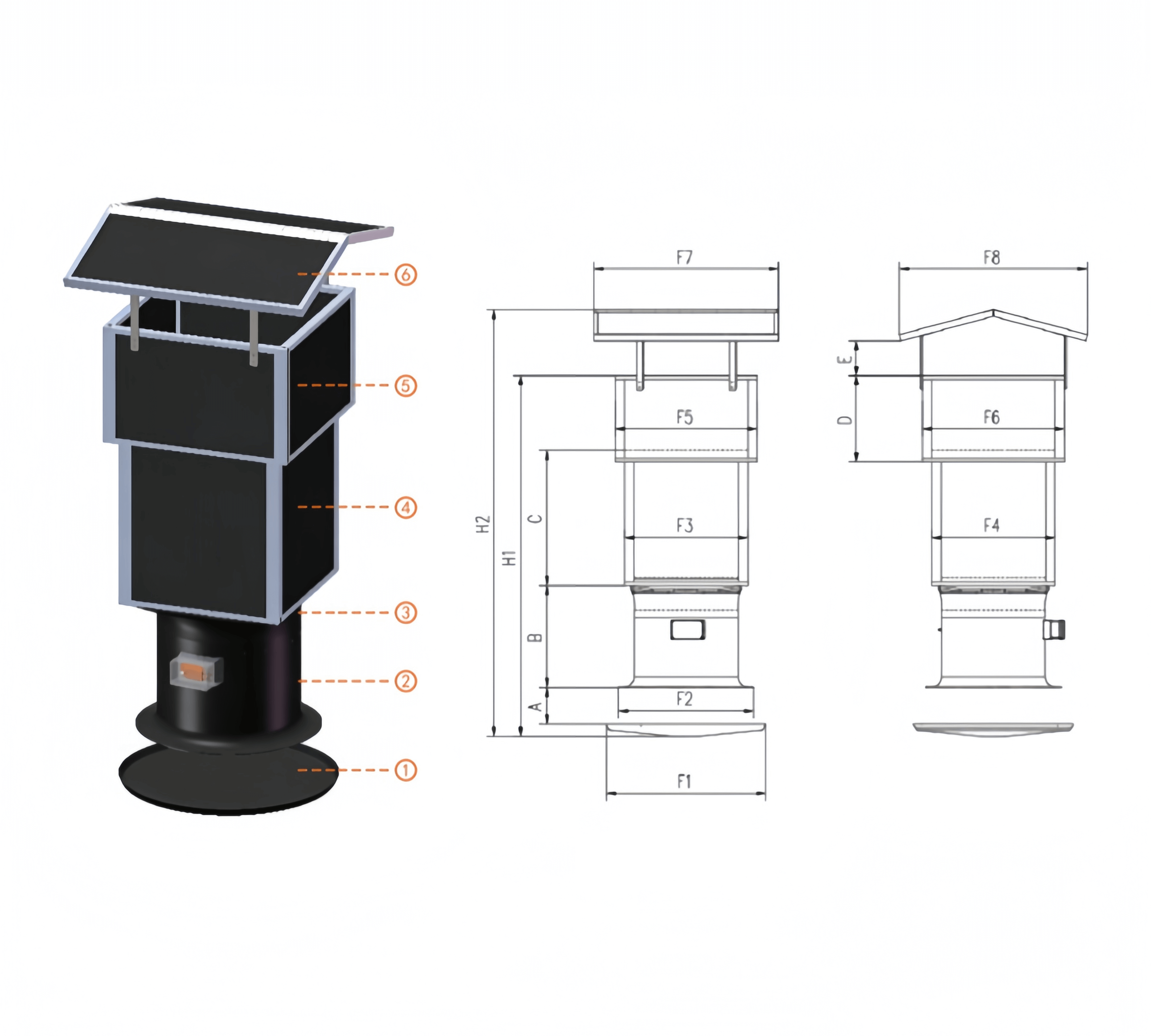

Reference Dimensions for Roof Fans
EC Motor:
Specifications: Class F insulation, IP66 protection rating, IE4 or higher energy efficiency class.
Control & Intelligence: Offers simple and superior speed regulation. High level of intelligence includes built-in protection against under-voltage, overload, over-current, locked rotor, overheating, and phase loss. Features an integrated controller with communication support.
Performance: Soft-start with no inrush current ensures a smooth current rise during both startup and speed adjustment, preventing grid impact and resulting in lower operational noise.
Butterfly Damper:
Blade Material: Grade 304 Stainless Steel.
Actuator Brand: BELIMO, with a 5-year warranty.
Configuration Options: Multiple configurations available (actuator power supply: 24V or 220V optional; control signal: on/off or 0-10V analog optional).
